SIMAC – Mechanical properties of nanostructured thin films

Permanents: Eric Le Bourhis (PR UP), Pierre Godard (MdC UP), Philippe Goudeau (DR CNRS), Pierre-Olivier Renault (PR UP), Pascale Valat-Villain (MdC UP)



Doctorants: Thibault Chommaux (2019-2022), Yen Fred Woguem (2020-2023)



One of the major objectives of this axis is to obtain a better understanding of the mechanical behavior of thin polycrystalline or monocrystalline films of a few tens of nanometer thick deposited by sputtering on polymers, and to highlight the effects of size, microstructure and architecture. The thin film - polymer composite is mechanically stressed using a very original biaxial deformation machine allowing to follow in situ by X-ray diffraction the microstructural evolutions in the film, the deformation at the crystalline level and the macroscopic deformation by digital image correlations. The experimental set-up makes it possible to measure relative changes in very low deformation (of the order of 10-5) and allow reproducing the complex deformation fields encountered by these materials in the various fields of application. The adhesion, the modes of cracking or the physical mechanisms at the origin of plasticity can be studied.



      • Effect of microstructure on the mechanical behavior of metallic thin films

Thanks to the deformation machine available on the DiffAbs beamline of the SOLEIL synchrotron, samples of metallic thin films with different thicknesses, grain sizes, residual stress states, crystallographic texture and architecture are studied in order to demonstrate a size effect on their mechanical behavior.

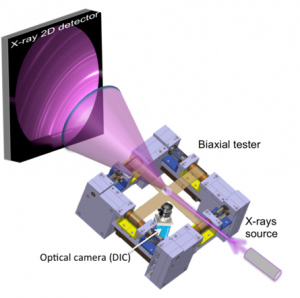

Schematic representation of the experimental setup available on the DiffAbs beamline of the SOLEIL synchrotron

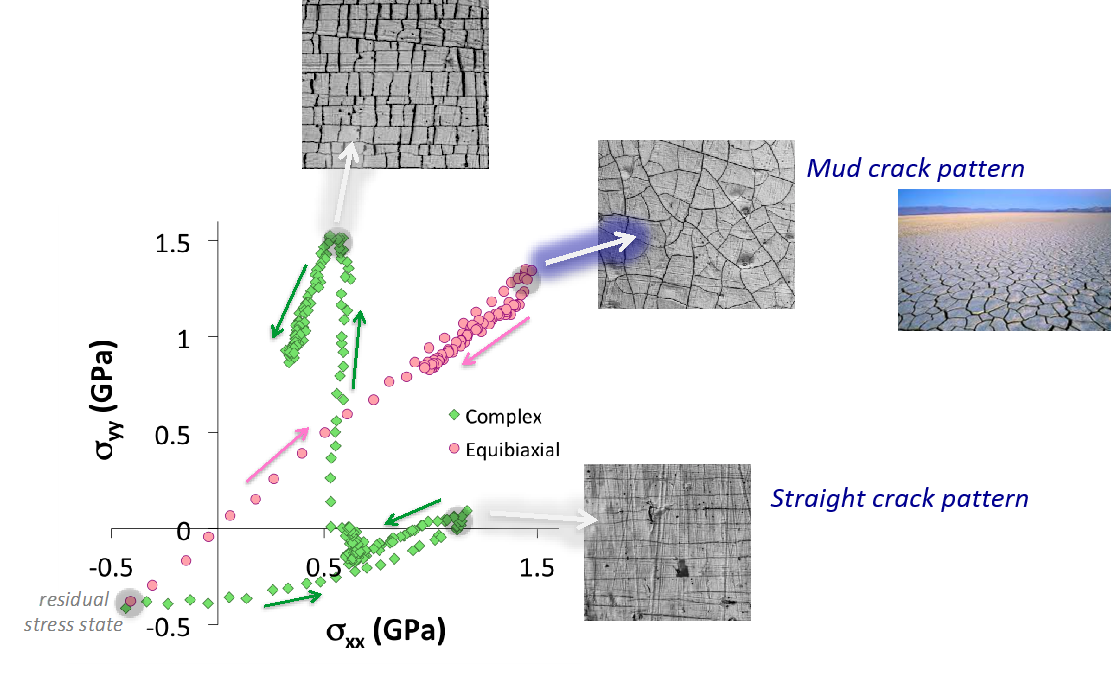

Evolution of stress components σxx and σyy in thin films during biaxial tests

      • Thin Film Relaxation Study

X-ray diffraction provides the residual and applied stresses to a material, as well as the elastic strain heterogeneities (with the width of the Bragg peaks). However, DRX alone can hardly isolate a deformation mechanism. This is particularly problematic when several mechanisms are in competition, as in the case of nanocrystals. An original activity developed in the team is the study with X-ray diffraction of the mechanical relaxation of thin films. Indeed, such tests allow measuring activation volumes which are characteristic of the main plasticity mechanism, and therefore of the microstructure of the material at a given point of the test. After having demonstrated the feasibility of such mechanical tests, we simultaneously determined the evolution of the activation volumes for two texture components of a gold film 500 nm thick and showed the importance of the initial population of defects in the mechanical behavior of nanocrystalline thin films (produced by sputtering). While academic research focuses on uni-axial tests, the conditions of use of the materials in question generally lead to bi-axial stresses. We performed tensile cycles in order to highlight the importance of the mechanical annealing observed during the various stresses.



      • Plasticity of monocrystalline thin films

The plasticity mechanisms are anisotropic and evolve below a few tens of nanometers. In order to better understand these mechanisms involved and their relative importance, we have attempted to quantify the proportion of twinning in situ during a deformation test. This was done in 50 nm single crystal gold films which are sensitive not only to thickness. We were able to demonstrate the importance of twinning in the deformation in certain crystallographic directions, like [110] or [100].



These synchrotron activities were developed within the framework of an ANR Pnano Cmonano which associated Soleil and the LSPM (formerly LPMTM) of Villetaneuse for polycrystalline modeling. They come within the framework of the GDRi Mecano.
